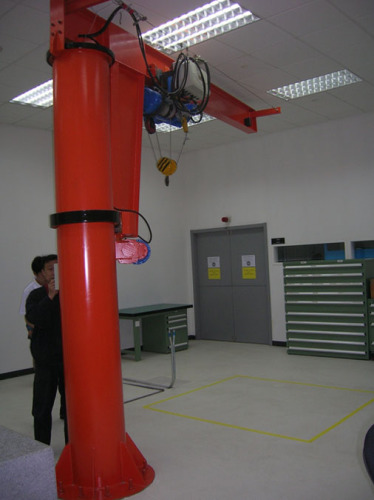

BZD type pillar jib crane
1.Capacity.:0.25~16t
2.arm length:max.16m
3.lifting height:max.20m
4.working grade:A3
5.220/380/400/415/440;50
1. Brief introduction
BZD type pillar jib crane is a set of middle or small type equipment for lifting, which forms a complete set with electric hoist. It is usually Controlled by push button or remote as well as manual pulling, which is reliable and distinctive.
Operated in three-dimensional space,360 degree rotation. Showing more superiority than other conventional equipments for lifting in short-distance and dense lifting occasion, like immovably place dock, warehouse, workshop etc . Ambient temperature should be no more than 40 oC, forbidden to use in easily combustible, explosive, corrosive, electromagnetic, melting metal, overloading and dust works.
2. Technical Parameters
Type | Rated lifting capacity (t) | Lifting speed (m/min) | Slewing speed (r/min) | L mm | R2 mm | R1 mm | H mm | h mm |
ZX-A 0.25-D/S | 0.25 | 1.3 | 0.92 | 3.4-5.4 | 3-5 | 1.2 | 3-5 | 2-4 |
ZX-A 0.5-D/S | 0.5 | 1.2 | 0.92 | |||||
ZX-A 1-D/S | 1 | 1.2(4) | 0.76 | 3.5-5.5 | ||||
ZX-A 2-D/S | 2 | 0.7(4) | 0.76 | 3.8 | 3.3 | 1.4 | 4.4 | 4 |
0.59 | 5.6 | 5 | 1.4 | 5.5 | 4 | |||
0.51 | 6.6 | 6 | 1.6 | 4.7 | 3.5 | |||
ZX-A 3-D/S | 3 | 0.5(4) | 0.51 | 5.8 | 5 | 1.8 | 5.2 | 3.3 |
ZX-A 5-D/S | 5 | 0.51 | 4.8 | 4 | 2 | 4.9 | 3 |
3. General diagram of external form
4. Features:
1) Advanced combination of motor, reducer, brake and drum.
2) Widely used with I-beam.
3) Light duty type
4) Safe traveling
5) Fluent starting and stopping
6) Noise-less
7) Good appearance
8) Easy and convenient maintenance
9) Cost effective
