Product Detail

Model No.: LH

Power Source: Electric

Brand Name: Zhongyuan Shengqi

Maximum Lifting Height: 50m

color: red

frequency: 50/60Hz

Sling Type: Others

Usage: Others

Maximum Lifting Weight: 50t

Lift Speed: 3.5-8 m/min

voltage: 220/380/400/415/440V

phase: 3P

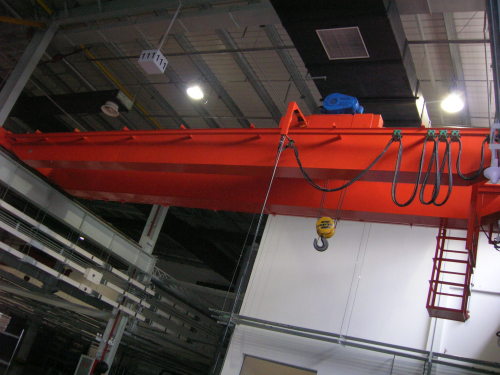

LH Double Girder hoist crane
1.capacity:3-50t
2.span:5-35m
3.lifting height:6-50m
4.Voltage:220/380/400/415/440
5.frequency:50/60Hz

1.Introduction
LH type Double Girder Overhead Crane with Hoist

Electric overhead crane with hoist is electric hoist collocate windlass crab, bridge adopt deflection tract box girder .travelling and traversing mechanism adopt the transmission method of "three for one", cable feed electric, main girder and end carriage connect by knock-down bolt. Hoist light dead weight, small volume, simple structure, economic and applicable, It is convenient for installment, use, maintain transport. The kinds of crane used in examine, assemble, load and unload of workshop, workshop, yard ,power station which mechanism is light and medium.

2.Technical parameter

Lifting capacity
Span
Lifting speed
Trolley traveling speed
Crane traveling speed
Lifting height
Work duty
Operation method
Main lifting motor
Trolley traveling motor
Crane traveling motor
Recommended rail motel
Max wheel pressure
t
m
m/min
m/min
m/min
m
Model/
power
Model/
power
Model/
power
Kg/m
KN
10
10.5
A3 4m/min A5 6m/min
20
20
30
6
9
12
A3-A5
Ground
Cabin
A3 ZD₁41-4/7.5 kw
A5 ZD₁51-4/13 kw
YSE80₁-4/0.4kw×2
YSE90S-4/1.5 kw×2
24 kg/m
67.8
13.5
71.9
16.5
76.1
19.5
82.5
22.5
86.5
25.5
92.8
28.5
100.8
31.5
106.8
16
10.5
A3 3m/min
A5 4m/min
20
20
30
6
9
12
A3-A5
Ground
Cabin
A3 ZD₁51-4/13 kw
A5 ZD₁62-6/18.5 kw
YSE80₁-4/0.8kw×2
YSE90L-4/1.5 kw×2
38kg/m
100.5
13.5
104.9
16.5
409.4
19.5
115.7
22.5
121.1
25.5
129.3
28.5
136.9
31.5
148.0

3.Sketch

Trolley

Didn't find what you're looking for? Post Buying Lead or contact HiSupplier Customer Service Center for help!

Related Search

Crane Hoist Hoist Crane Electric Hoist Chain Hoist Engine Hoist More>>

Find more related products in following catalogs on Hisupplier.com

Machinery & Industrial Supplies >> Materials Handling >> Cranes & Hoists

hoist crane

Product Detail

Related Search

Find more related products in following catalogs on Hisupplier.com

Company Info

You May Like:

Product (19)

Lifting capacity	Span	Lifting speed	Trolley traveling speed	Crane traveling speed	Lifting height	Work duty	Operation method	Main lifting motor	Trolley traveling motor	Crane traveling motor	Recommended rail motel	Max wheel pressure
													t	m	m/min	m/min	m/min	m	Model/ power	Model/ power	Model/ power	Kg/m	KN
10	10.5	A3 4m/min A5 6m/min	20	20 30	6 9 12	A3-A5	Ground Cabin	A3 ZD₁41-4/7.5 kw A5 ZD₁51-4/13 kw	YSE80₁-4/0.4kw×2	YSE90S-4/1.5 kw×2	24 kg/m	67.8
	13.5											71.9
	16.5											76.1
	19.5											82.5
	22.5											86.5
	25.5											92.8
	28.5											100.8
	31.5											106.8
16	10.5	A3 3m/min A5 4m/min	20	20 30	6 9 12	A3-A5	Ground Cabin	A3 ZD₁51-4/13 kw A5 ZD₁62-6/18.5 kw	YSE80₁-4/0.8kw×2	YSE90L-4/1.5 kw×2	38kg/m	100.5
	13.5											104.9
	16.5											409.4
	19.5											115.7
	22.5											121.1
	25.5											129.3
	28.5											136.9
	31.5											148.0
